NuPower™ Series High Power Amplifiers

Power Amplifier Part Number	Min Freq (MHz)	Max Freq (MHz)	Psat, Typ (W)	Gain, Typ (dB)	Input Supply (VDC)	Size L·W·H (in)	Data Sheet	RFQ
NW-PA-15D05A-C01-S01	800	2500	20	44	27 - 30	4.50 x 3.50 x 0.61	Data Sheet	RFQ
NW-PA-12D05A	1700	2400	35	45	27 - 30	4.50 x 3.50 x 0.61	Data Sheet	RFQ
NW-PA-11C01A	225	2400	15	40	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-11B02A	200	2600	10	40	11 - 32	2.34 x 1.96 x 0.62	Data Sheet	RFQ
NW-PA-11B02A-TAC	200	2600	10	40	11 - 32	3.50 x 4.50 x 1.50	Data Sheet	RFQ
NW-PA-12B01A	1000	2500	18	42	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-12B01A-D30	1000	2500	20	12	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-12B01A-05	1435	2395	16	40	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-12B01A-07	1500	2500	16	40	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-LS-5-MI01	1000	2500	5	37	26 - 30	1.80 x 1.80 x 0.50	Data Sheet	RFQ
NW-PA-LS-75-T01	800	2500	75	46	27 - 32	5.0 x 10.0 x 0.61	Data Sheet	RFQ
NW-PA-LS-5-MI01-D30	1000	2500	5	7	26 - 30	1.80 x 1.80 x 0.50	Data Sheet	RFQ
NW-PA-12A01A	1000	2500	16	40	26 - 30	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-S-100-A01	2000	2500	125	21	26 - 32	6.50 x 4.50 x 1.0	Data Sheet	RFQ
NW-PA-13G05A	800	2000	50	47	27 - 30	4.50 x 3.50 x 0.61	Data Sheet	RFQ
NW-PA-12B01A-01	1000	1500	17	42	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-12B01A-02	1000	2000	16	42	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-12B01A-03	1435	1525	15	42	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-12B01A-04	1435	1850	15	42	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-12B01A-06	1500	2000	16	42	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-12B01A-08	1755	1850	14	42	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-05E05A	2000	2600	30	44	27 - 30	4.50 x 3.50 x 0.61	Data Sheet	RFQ
NW-PA-12B01A-09	2000	2500	16	40	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-12B01A-10	2200	2395	14	40	11 - 32	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-C-20-R01	4400	4900	20	43	27 - 32	4.50 x 3.50 x 0.61	Data Sheet	RFQ
NW-PA-L60T01	960	1390	60	48	27 - 30	4.50 x 3.50 x 0.61	Data Sheet	RFQ
NW-PA-C-30-R01	5030	5090	30	45	27 - 32	4.50 x 3.50 x 0.61	Data Sheet	RFQ
NW-PA-C-10-R01	5100	5900	10	40	27 - 32	3.57 x 2.57 x 0.50	Data Sheet	RFQ
NW-PA-05E05A-C01-S01	2300	2500	35	45.9	27 - 32	4.50 x 3.50 x 0.61	Data Sheet	RFQ
NW-PA-S-10-C01-S01	3000	4000	10	44	11 - 32	3.25 x 2.0 x 0.50	Data Sheet	RFQ
NW-PA-S-10-C02-S01	2200	2500	14	41.5	22 - 32	2.125 x 5.000 x 0.730	Data Sheet	RFQ
NW-PA-U-20-C01-S01	225	1000	20	57	11 - 30	3.00 x 2.00 x 0.65	Data Sheet	RFQ
NW-PA-L-10-C01-S01	1700	1850	18	42.5	22 - 32	2.125 x 5.00 x 0.730	Data Sheet	RFQ
NW-PA-LS-20-C01-S01	1000	2500	20	40	11 - 32	3.00 x 2.0 x 0.65	Data Sheet	RFQ
NW-PA-KU-20-C01-S01	14500	15500	20	33	24 - 32	6.00 x 4.10 x 0.88	Data Sheet	RFQ
NW-PA-ULSC-20-C01-S01	500	6000	20	38	20 - 32	5.5 x 3.42 x 1.50	Data Sheet	RFQ
NW-PA-11B02A-TAC2	200	2600	10	28	11 - 32	4.50 x 3.50 x 1.50	Data Sheet	RFQ
NW-PA-ULS-25-C01-S01	200	2600	25	44	11 - 32	2.34 x 1.96 x 0.62	Data Sheet	RFQ

NuPower™ Series High Power Amplifiers

NuWaves’ industry leading NuPower™ series of solid-state RF and microwave power amplifiers are designed to extend the operational range of radio applications, such as airborne and tactical military datalinks.

Our miniature and ruggedized RF power amplifier modules are built to last in harsh environments while offering superb power density and high operating efficiency, making them ideal for size, weight, and power (SWaP)-constrained applications. With a NuPower™ module, you are guaranteed best-in-class quality and performance proven through annual audits of our AS9100:2016-certified Quality Management System and over 23 years of RF and microwave engineering design experience. Our broad catalog of commercial off-the-shelf (COTS) products features amplifiers that provide > 100 W of RF output power covering frequencies up to 6 GHz.

View All Power Amplifiers

Typical Features of NuPower™ Series

High-efficiency
GaN technology
Miniaturized form factors
Over voltage protections
Reverse voltage protection
Logic ON/OFF control
Transmit/Standby modes
Linear operation
Over temperature protection
Ruggedized chassis

Typical Benefits of NuPower™ Series

Extended range of RF & microwave systems and data links
Requires less volume on space-constrained platforms compared with industry
Reduced load on DC power budget due to high-efficiency operation
Temperature monitoring line and temp fault flag
Ruggedized chassis to operate in the harshest environments
NuWaves’ A9100:2016-certified Quality Management System (QMS) guarantees quality assurance and materials traceability for all modules delivered
Made in USA by veteran-owned small business (VOSB)

Typical Applications of NuPower™ Series

Aerospace
Airborne Data Links
Broadband RF Telemetry
C4ISR
CDL Radios
Command & Control (C2)
C-UAS
Defense
Digital and High Definition Video
Electronic Warfare (EW)
Intelligence, Surveillance, Reconnaissance (ISR)
Jamming
Link Margin Improvement
MANET Mesh Networking Radios
Manpack Radios
Microwave Generators
Military Communications
Military Radars
OFDM & COFDM Radios
Radio Ground Stations
Range Extension of Radio Systems
RF Ablation
RF Communication Systems
Satellite (SAT/SATCOM) Systems
Software Defined Radios (SDR)
Tactical Data Links
Tactical Radio Kits
Test Labs
Long Range Tracking Antennas
Unmanned Aerial Vehicles (UAV) – Groups 2 – 5
Unmanned Aircraft Systems (UAS)
Unmanned Ground Vehicles (UGV)

Frequency Bands Covered

VHF
UHF
L-band
S-band
C-band
X-band
Ku-band

See something you like but it doesn’t fit your exact requirements?

We’re experts at providing modified custom-COTS variants of our existing products, as well as fully custom designs from concept-to-production. Select your product and reach out to our sales team to find out more.

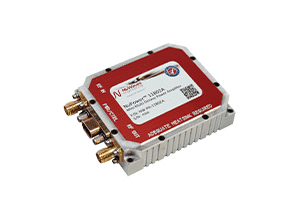

Product Spotlight
