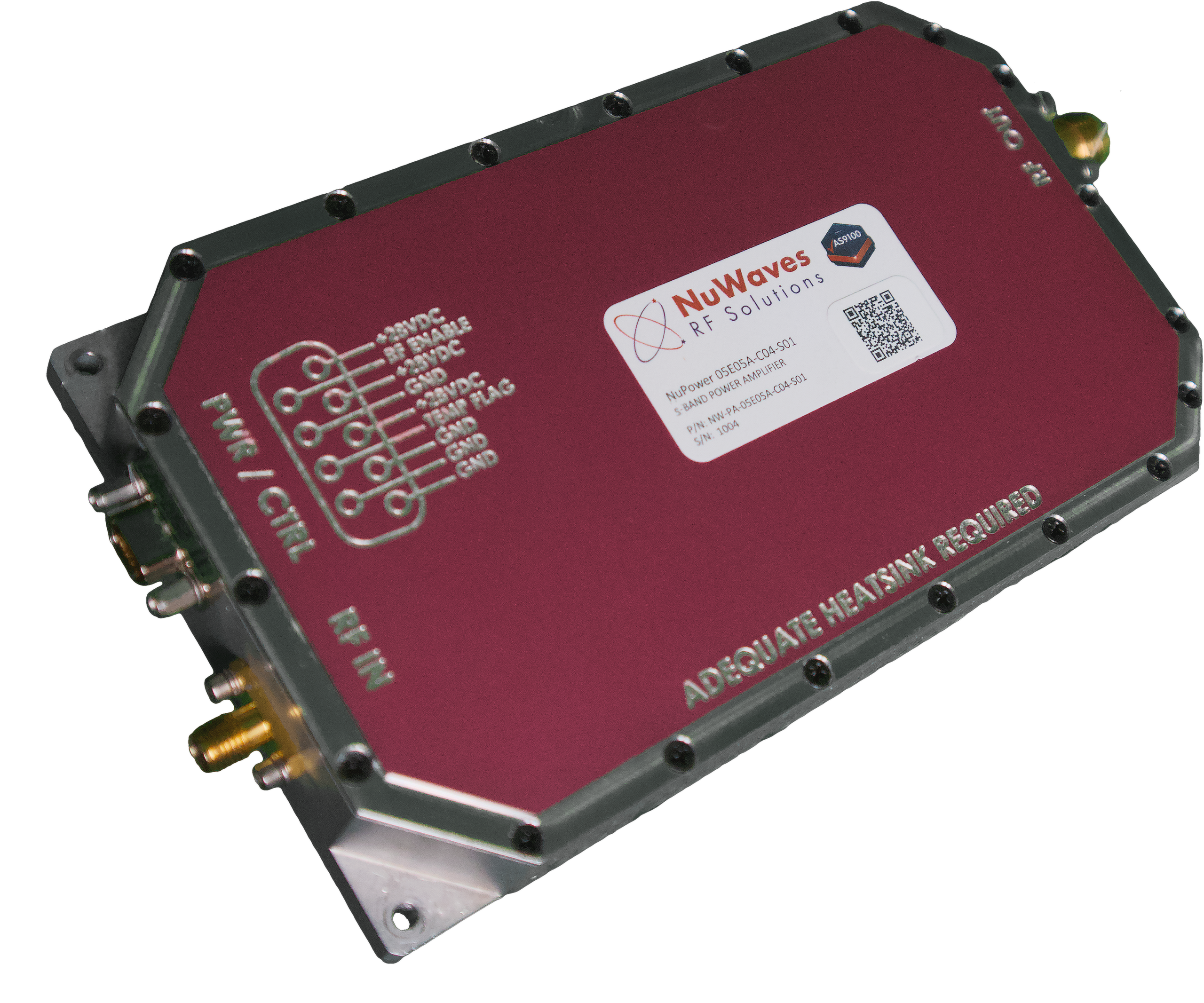

S-Band Solid State Power Amplifier (SSPA): NuPower 05E05A-C04-S01

The S-Band Solid State Power Amplifier (SSPA): NuPower 05E05A-C04-S01 is a compact, high-efficiency S-band solid state power amplifier (SSPA) delivering 35 Watts (minimum) of RF output power from 2293.75 MHz to 2295.75 MHz. Built on the latest gallium nitride/ GaN technology, this connectorized RF power amplifier accepts a nominal 0 dBm input and provides over 45 dB of gain for continuous wave (CW) and near-constant-envelope waveforms. With 35% power efficiency at rated power and a form factor under 10 cubic inches, the 05E05A-C04-S01 is ideal for SWaP-constrained RF telemetry, tactical communication, and electronic warfare systems — extending operational range on unmanned aircraft systems (UAS), unmanned ground vehicles (UGV), and software defined radios.
