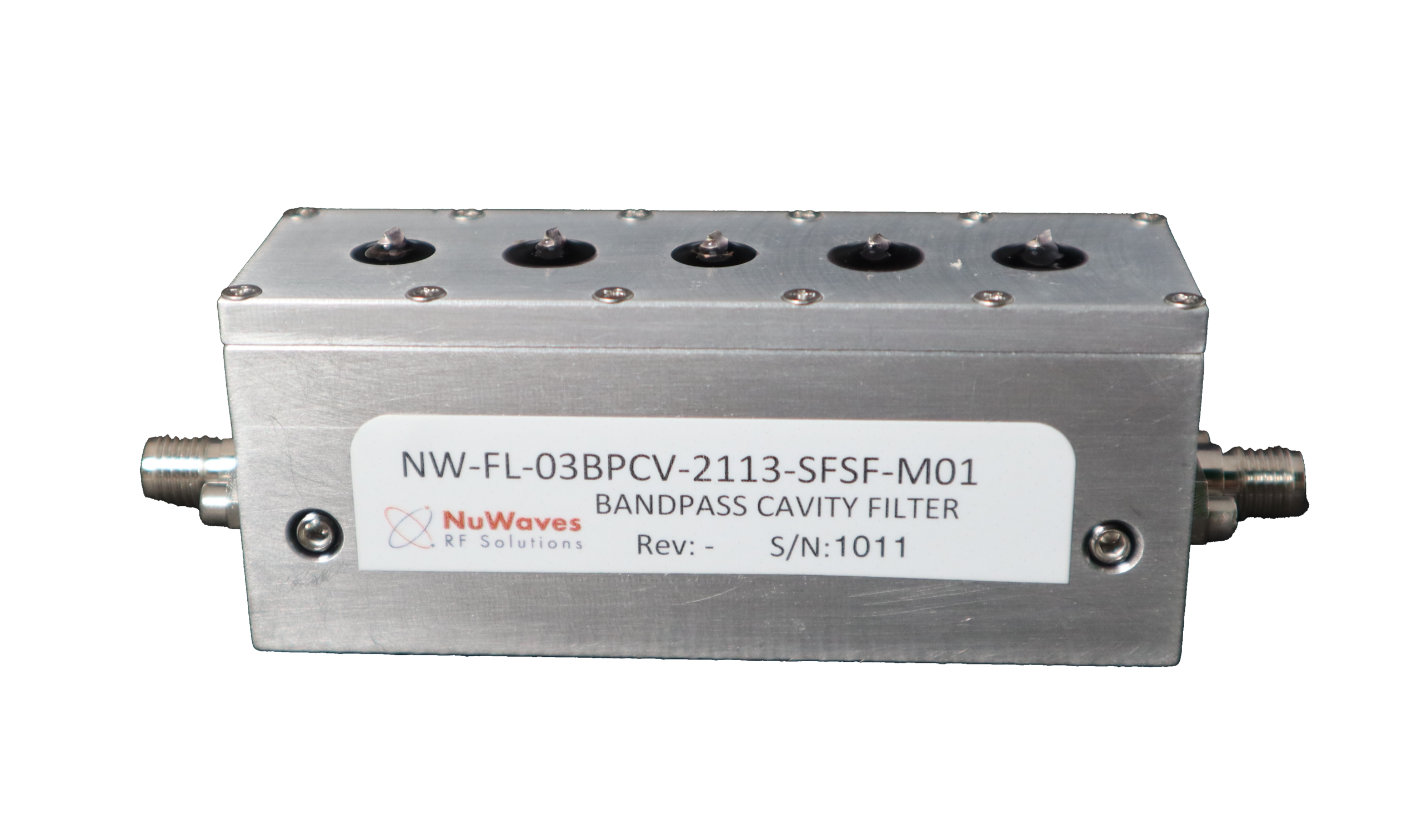

NuFilter™ 03BPCV-2113-SFSF-M01 S-Band Bandpass Cavity Filter

The NuFilter™ 03BPCV-2113-SFSF-M01 is a 3-pole S-band bandpass cavity filter with a passband of 2108 to 2118 MHz, a 10 MHz bandwidth centered at 2113 MHz. It is designed to reduce harmonics at the output of transmitters operating in S-Band and accepts RF input power up to 50 W CW.

S-Band Bandpass Cavity Filter Performance

The filter provides harmonic filtering and out-of-band rejection of 57 dB typical (41 dB minimum) at 1932 and 2294 MHz. Passband insertion loss is 0.98 dB typical at the 2113 MHz center frequency and 1.238 dB maximum across the passband. Passband flatness is 0.1 dB typical, and VSWR within the passband is 1.5:1 maximum.

Key Specifications

• Passband: 2108 to 2118 MHz (10 MHz bandwidth)
• Center frequency: 2113 MHz
• Insertion loss: 0.98 dB typical at 2113 MHz, 1.238 dB maximum in the passband
• Rejection: 57 dB typical, 41 dB minimum at 1932 MHz and 2294 MHz
• Passband flatness: 0.1 dB typical
• VSWR: 1.15:1 typical, 1.5:1 maximum within the passband
• RF input power: 50 W CW maximum
• RF connectors: SMA female, input and output
• Dimensions: 2.66 x 1.08 x 0.83 in maximum
• Finish: silver plating
• Operating temperature: -40 to +60 °C
• Storage temperature: -40 to +85 °C
• Relative humidity: up to 95%, non-condensing
• Altitude: up to 30,000 ft (MIL-STD-810F Method 500.4)
• Export classification: EAR99

Electrical specifications are at 25 °C with a 50 Ω source and load. See the NuFilter™ 03BPCV-2113-SFSF-M01 data sheet for complete specifications.

Applications

• Amplifier harmonic filtering
• Military communications
• Avionics
• Point-to-point communications
• Software defined radios (SDRs)
• RF filtering
• Test and measurement

Off-the-Shelf and Custom RF Bandpass Filters

With standard SMA connectors, the NuFilter can quickly and easily be added to any RF system. NuWaves’ NuFilter™ removes the time and cost burden of creating a design, laying out a PCB or designing a mechanical cavity housing, buying parts, assembling, tuning, and testing.

For questions about this S-band bandpass cavity filter, contact sales@nuwaves.com. NuWaves also offers a line of commercial off-the-shelf RF filters and designs custom RF filters to specification.
