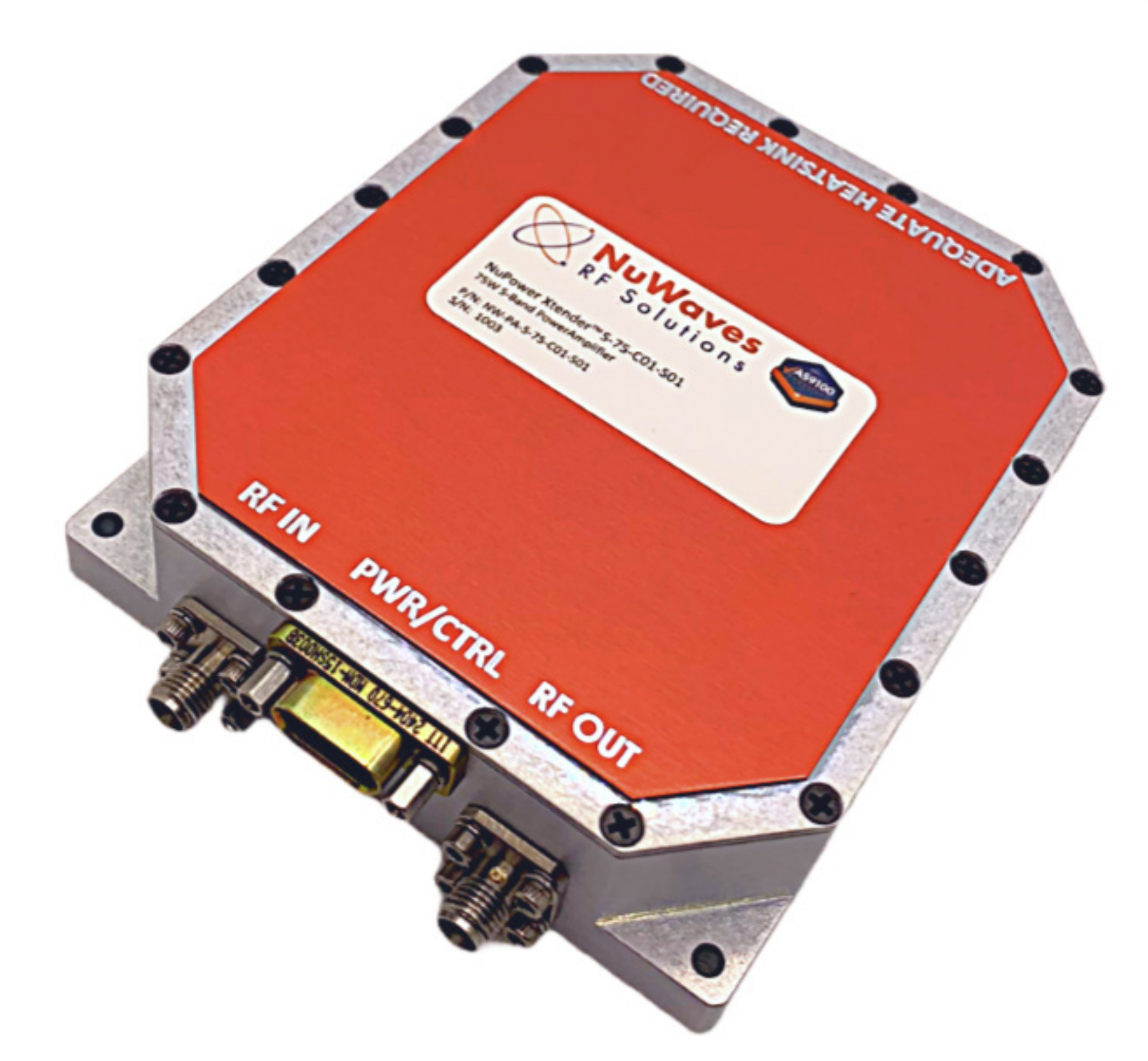

RF Power Amplifier (PA): NuPower S-75-C01-S01
The NuPowerTM S-75-C01-S01 is a low SWaP, 75W linear RF power amplifier, ideal for extending
the range of datalinks and transmitters. Based on highly linear LDMOS technology, this amplifier is suitable for applications requiring both high data rates and high RF output power for long distance data links. It supports complex modulations with high peak-to-average ratios (PARs), where minimal signal distortion is required. Constant envelope signals such as CW, AM, and FM are also supported.
At a nominal +26 dBm RF input, the amplifier typically provides 22.5 dB of gain to achieve 75 Watts RF
output power. Ideal for size, weight, and power-constrained broadband RF telemetry and tactical communication systems. The NuPower S-75-C01-S01’s rugged chassis and simple connections allow the system integrator to easily incorporate the unit into a platform operating in harsh environments with limited space.
