Bi-directional Amplifiers (BDA) | NuPower Xtender™ Series

  • High-efficiency GaN technology
  • Miniaturized form factors
  • Over voltage protections
  • Reverse voltage protection
  • Logic ON/OFF control
  • Transmit/Standby modes
  • Linear operation
  • Over temperature protection
  • Ruggedized chassis
  • Extended range of RF & microwave systems and data links
  • Requires less volume on space-constrained platforms compared with industry
  • Reduced load on DC power budget due to high-efficiency operation
  • Temperature monitoring line and temp fault flag
  • Ruggedized chassis to operate in the harshest environments
  • NuWaves’ A9100:2016-certified Quality Management System (QMS) guarantees quality assurance and materials traceability for all modules delivered
  • Made in USA by veteran-owned small business (VOSB)
  • Aerospace
  • Airborne Data Links
  • Broadband RF Telemetry
  • C4ISR
  • CDL Radios
  • Command & Control (C2)
  • C-UAS
  • Defense
  • Digital and High Definition Video
  • Electronic Warfare (EW)
  • Intelligence, Surveillance, Reconnaissance (ISR)
  • Link Margin Improvement
  • MANET Mesh Networking Radios
  • Manpack Radios
  • Military
  • Communications
  • Military Radars
  • OFDM & COFDM Radios
  • Radio Ground Stations
  • Extending Range of Radio Systems
  • RF Communication Systems
  • Satellite (SAT/SATCOM) Systems
  • Software Defined Radios (SDR)
  • Tactical Data Links
  • Tactical Radio Kits
  • Test Labs
  • Long Range Tracking Antennas
  • Unmanned Aerial Vehicles (UAV) – Groups 2 – 5
  • Unmanned Aircraft Systems (UAS)
  • Unmanned Ground Vehicles (UGV)
  • VHF
  • UHF
  • L-band
  • S-band
  • C-band
  • X-band
  • Ku-band

NuWaves’ industry-leading NuPower Xtender™ series of solid-state RF & microwave bidirectional amps are designed to extend the operational range of radio applications, such as airborne and tactical military datalinks.

Bidrectional Amplifier Part NumberMin Freq (MHz)Max Freq (MHz)Psat, Typ (W)Gain, Typ (dB)Input Supply (VDC)Size L·W·H (in)Data SheetRFQ
NW-BA-SCISR-20-M0210005100201027 - 327.25 x 4.25 x 1.375Data SheetRFQ
NW-BA-SCISR-20-C01-S0110005100201411 - 327.25 x 4.50 x 1.00Data SheetRFQ

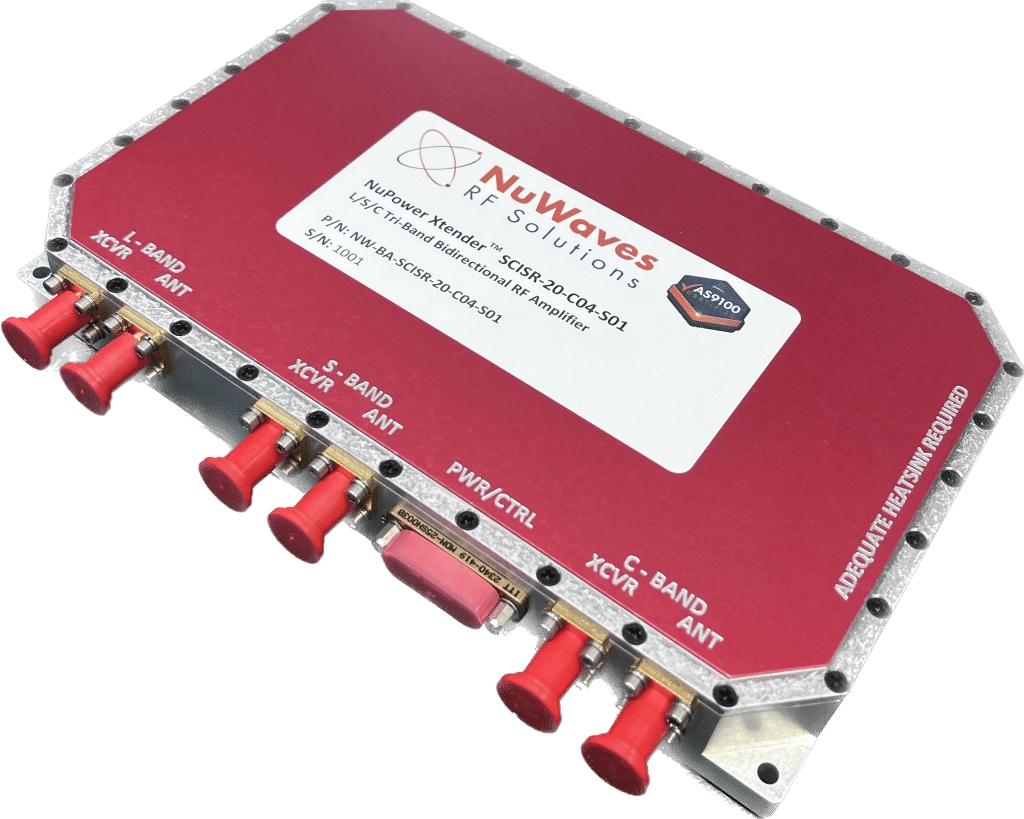

NW-BA-SCISR-20-C04-S0110005100201411 - 327.25 x 4.50 x 1.00Data SheetRFQ
NW-BA-VU-4-GX01225512163610 - 322.34 x 2.34 x 0.61Data SheetRFQ
NW-BA-VU-4-GX02225512163610 - 322.34 x 2.34 x 0.70Data SheetRFQ
NW-BA-C-10-RX0144005100101027 - 323.57 x 2.57 x 0.50Data SheetRFQ
NW-BA-C-10-RX0344005100101027 - 323.57 x 2.57 x 0.50Data SheetRFQ
NW-BA-C-10-RX03-C03751255875101027 - 323.57 x 2.57 x 0.50Data SheetRFQ

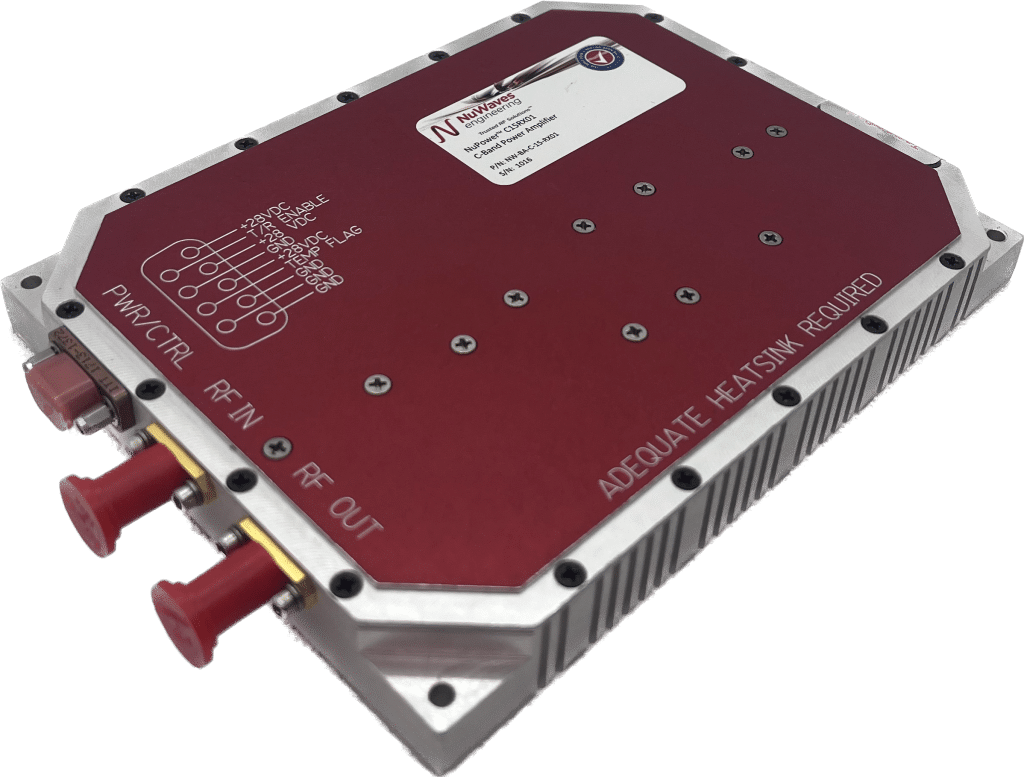

NW-BA-C-15-RX0144004900154327 - 325.5 x 4.25 x 0.68Data SheetRFQ
NW-BA-C-15-RX01-C04450305091154027 - 325.50 x 4.25 x 0.68Data SheetRFQ
NW-BA-LS-10-S0110002500203811 - 323.00 x 2.00 x 0.65Data SheetRFQ
NW-BA-LS-10-S01-D3010002500201411 - 323.00 x 2.00 x 0.65Data SheetRFQ
NW-BA-VU-4-GX02-C101225450125110 - 322.34 x 2.34 x 0.7Data SheetRFQ
NW-BA-LS-10-S01-D1910002500252511 - 323.00 x 2.00 x 0.65Data SheetRFQ

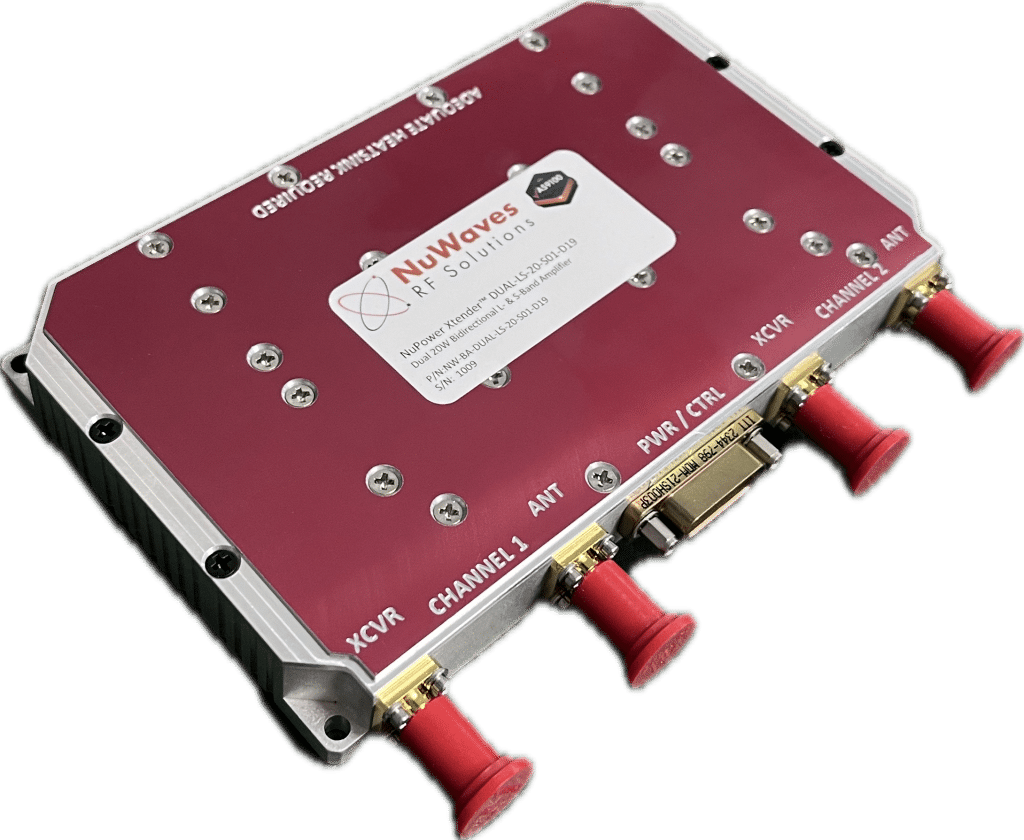

NW-BA-DUAL-LS-20-S01-D1910002500252511 - 323.00 x 5.00 x 0.60Data SheetRFQ
NW-BA-DUAL-LS-20-S01-D3010002500251411 - 323.00 x 5.00 x 0.60Data SheetRFQ
NW-BA-DUAL-S-50-C01-S01220025005017284.00 x 7.00 x 2.00Data SheetRFQ
NW-BA-DUAL-S-50-C02-S01220025005017284.00 x 7.00 x 1.00Data SheetRFQ
NW-BA-ULS-10-S01-D3020025002413.511-323.0 x 2.0 x 0.65Data Sheet
NW-BA-ULSC-20-C01-S015006000203820 - 326.0 x 4.25 x 1.5Data SheetRFQ

Bi-directional Amplifiers (BDA) |
NuPower Xtender™ Series

Our bidirectional amplifier (BDA) is miniature and ruggedized – built to last in harsh environments while offering superb power density and high operating efficiency, making them ideal for size, weight, and power (SWaP)-constrained applications for when size does matter. With a NuPower Xtender™ module, you are guaranteed quality and high performance proven through annual audits of our AS9100:2016-certified Quality Management System and over 20 years’ experience serving customers in defense, commercial, and industry markets. Our broad catalog of commercial off-the-shelf (COTS) features amplifiers that provide as much as 25 W of RF output power covering frequencies up to 6 GHz.

Intended to simplify subsystem architecture by providing both transmit and receive gain in a compact form factor, most modules can also be configured for ultra-fast autosense T/R detection and switching, making them plug-and-play range extenders for most systems applications.



View All Bidirectional Amplifiers
Ls10s01
