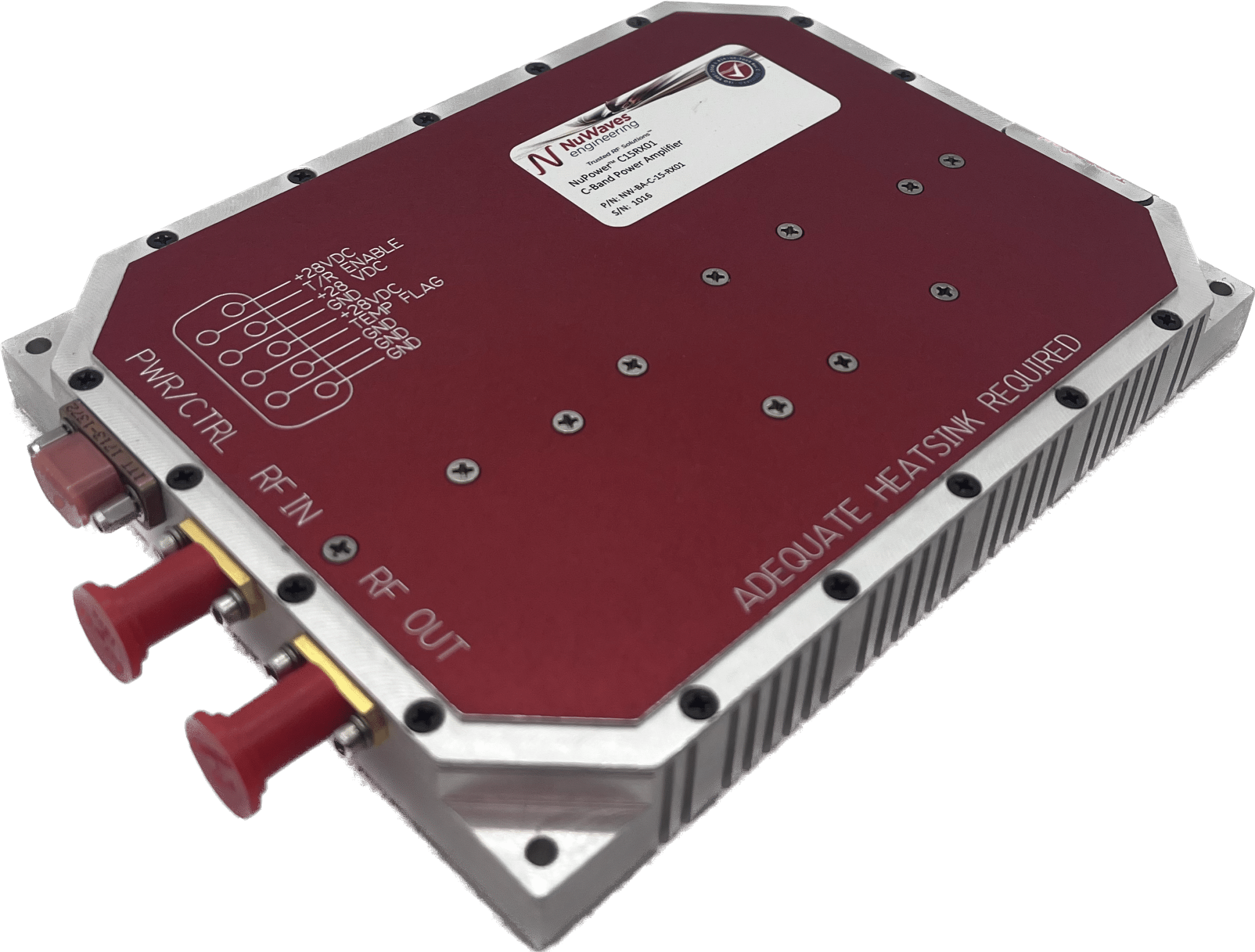

NuPower Xtender™ C15RX01 C-Band Bidirectional Amplifier

Part Number: NW-BA-C-15-RX01

The NuPower Xtender™ C15RX01 Bidirectional C-Band Amplifier module is a small, broadband, high-performance RF amplifier that generates 15 Watts (minimum) of RF power across the C-Band frequency range of 4400 to 4900 MHz.

Description
Product Documents

The NuPower Xtender C15RX01 C-Band RF bidirectional amplifier is ideal for extending the communication range of half-duplex transceivers with constant-envelope waveforms (i.e. PSK- and FSK-based modulations, such as SOQPSK and GFSK), and generates 15 Watts of RF transmit power. In receive mode, the NuPower Xtender offers a low noise figure of 3.5 dB and a low noise amplifier that provides 10 dB of gain. The module accepts a nominal +0 dBm input level and provides a minimum of 43 dB of transmit gain, all while operating with 35% or better power efficiency at most frequencies.

The NuPower Xtender features manual transmit / receive (T/R) mode selection, coupled with an extremely fast T/R mode switch time of 2 μS.

With a small form factor (17.6 cubic inches) and state-of-the-art Gallium Nitride (GaN) power amplifier device technology, the NuPower Xtender Bidirectional C-Band PA module is ideal for broadband RF telemetry and communication systems that require reliability and minimal size, weight, and power consumption (SWaP).

C15rcx01
Frequency Range
4400 to 4900 MHz
RF Output Power
20W (typ)
Power Gain
43dB
Receive Gain
10dB (typ)
Export Classification
EAR99
