Vegas-S MIL-STD-1553 Data Diode

Product Number: NW-1553-DD-VS01 Product Type:

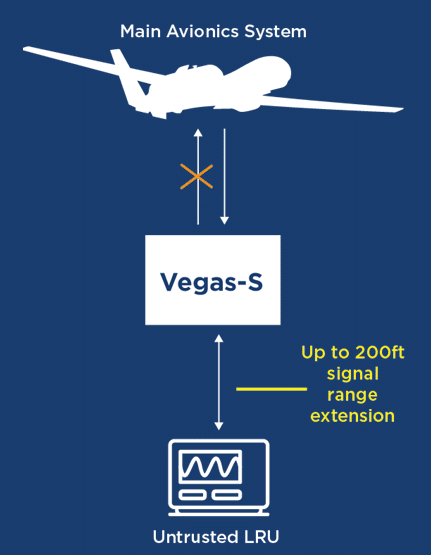

Combining a simplistic design in right-sized packaging, the Vegas-S data diode provides hardened security for the MIL-STD-1553 data bus.  Through one-directional data flow, Vegas-S acts as a physical firewall when integrated into the data bus.  With no microcontroller or microprocessor utilized in the design, Vegas-S is a plug and play device that cannot be exploited by cyber-attacks.  Protecting your system from untrusted bus monitors simplifies cyber assessment and authorization.

Export Classification

EAR99
  • Simple single chip solution
  • No loadable software or firmware
  • No microcontrollers or processors that could be maliciously altered
  • Very low input to output latency
  • Protects avionics bus from malicious traffic
  • Protect against an LRU failure or voltage transient
  • Subjected to MIL-STD 810G, MIL-STD 704F, and MIL-STD 461 tests
  • Acts as a physical firewall
  • Cleans up signals on the bus, and protects against signal transients
  • Alternative to untrusted monitors
  • Reconditions the MIL-STD-1553 signal for driving at least 200 feet of MIL-STD-1553 cable
  • Simplifies cyber assessment and authorization
  • Protects avionics bus from untrusted commercial-off-the-shelf (COTS) bus monitors
  • Protects avionics bus from roll on/off equipment
  • Protects the avionics bus from traffic insertion at open test ports on aircraft
  • Acts as a repeater to extend the length of the avionics bus
