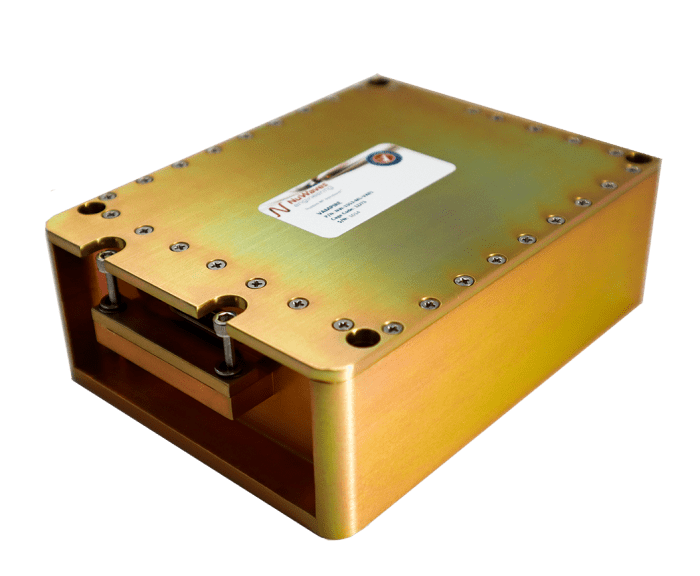

VAMPIRE MIL-STD-1553 Anomaly Detection and Data Recording

Product Number: NW-1553-ML-VA01 Product Type:

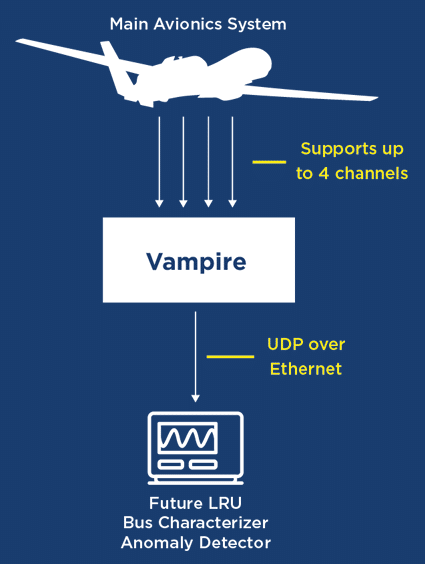

Supporting up to four channels, Vampire is a MIL-STD-1553 ethernet data diode capable of bus monitoring and logging.  One directional data flow offers safe and secure implementation into any MIL-STD-1553 data bus.  Providing up to 10 hours of data recording, Vampire can be utilized for an array of bus monitoring activities including: predictive maintenance, reverse engineering, anomaly detection, and as a real-time secondary display.

Included in the purchase of Vampire is a comprehensive software package allowing users to easily: parse data for analysis, perform anomaly detection, replay recorded data, easily visualize data captures, demodulate captured data, perform real-time playback, among other use case applications.

Export Classification

EAR99
  • Decodes incoming 1553 traffic
  • Creates timestamp for bus controller (BC) command message at 5 ns
  • Measures remote terminal (RT) response time to 5 ns
  • Packetizes 8 BC and RT responses into a UDP packet for transfer efficiency
  • Sends all decode data in UDP format out of Ethernet port
  • Alternative to Untrusted Monitors
  • Predictive Maintenance
  • Reverse Engineering
  • Anomaly Detection
  • Real Time Secondary Display
  • Commercial 1553 Over Ethernet
  • Can be used with commercial-off-the-shelf (COTS) Ehternet tools
  • Bus maintenance monitors and alerts
  • Anomaly detection of bus traffic
  • Statistical analysis of bus health during flight
  • Deep dive post forensics analysis of MIL-STD-1553 traffic (ICD verification, predictive maintenance, etc.)
