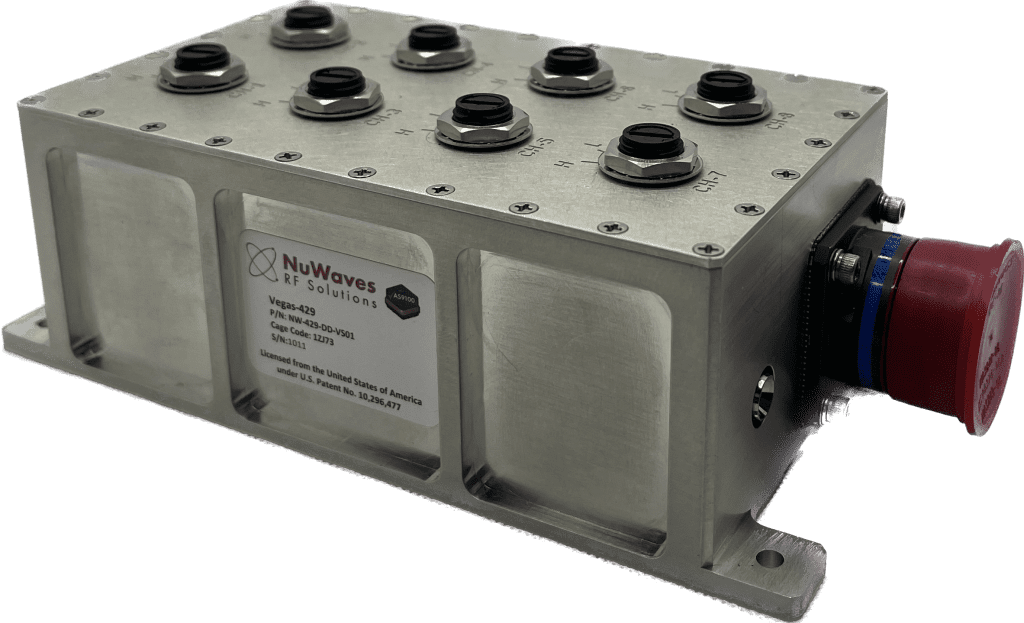

VEGAS-429 Data Diode

Vegas-429 allows for the isolation of the main ARINC 429 avionics bus from bus monitors or systems under test for enhanced safety of flight. This control of data flow over the ARINC 429 bus provides true risk reduction to the aircraft’s avionics bus for early software upgrades to existing bus monitoring systems, along with reducing the risk to the aircraft’s avionics bus for early bus monitor integration. Vegas-429 supports two independent ARINC 429 channels (ie: one ‘A’ and one ‘B’) and comes in a 35 in³ / 0.94 lb package offering 40 mA at +28VDC.
