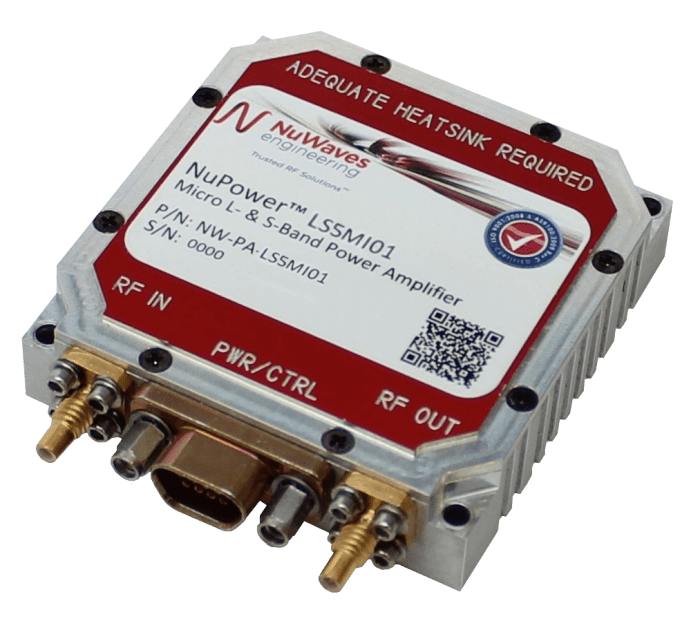

NuPower™ LS5MI01 Micro L- & S-Band Power Amplifier

Product Number: NW-PA-LS-5-MI01 Product Type:

The NuPower™ LS5MI01 Micro L- & S-band radio frequency (RF) power amplifier boasts the industry’s smallest form factor in its class of PAs at 1.62 cubic inches and provides 5 watts of RF power for CW and near-constant-envelope waveforms from 1.0 to 2.5 GHz.

Operating Frequency

1000 to 2500 MHz

Output Power, Typ

5 W Psat

Export Classification

EAR99

Based on the latest gallium nitride (GaN) technology, this solid state power amplifier (SSPA) module boasts high DC-to-RF power efficiency of up to 30% and micro-miniature packaging, making it ideal for size, weight, and power (SWaP)-constrained broadband RF telemetry and tactical communication systems applications.

The NuPower LS5MI01 Micro PA extends the communication range of a wide variety of L-band and S-band transmitters and transceivers. In fact, the NuPower LS5MI01 Micro PA has been tested and approved by L-3 Communications for use with its Bandit digital data link transceiver, of which the NuPower LS5MI01 Micro PA can effectively provide twice the range.

All NuPower PAs come standard with a Micro-D interface cable with 18″ flying leads. Available options for the PA include a +30 dBm / 1 W input drive level version (P/N: NW‐PA‐LS‐5‐MI01‐D30), a fan-cooled heat sink, and an interface cable assembly with banana plug terminations for lab testing.
