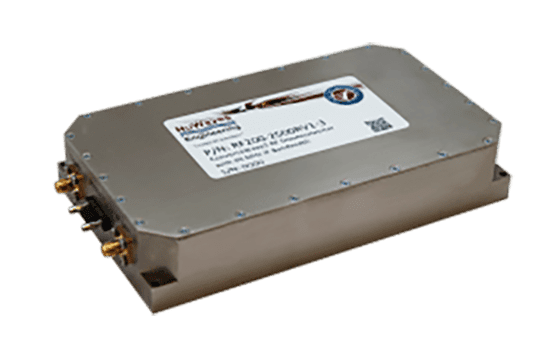

NuWaves’ Convertawave™ series of RF Downconverters offer unmatched percision with 100 kHz or 1 Hz tuning resolution with superior rejection of out-of-bad interference. These downconverters are robust, providing high dynamic performance, and featuring both automatic gain control (AGC) and manual gain control (MGC) ConvertaWave’s combination of power efficiency, miniaturization, and ruggedized packaging is ideal, but not limited to: SIGINT, COMINT, ELINT, and RF down conversion.
| Part Number | Freq Range, min (MHz) | Freq Range, max (MHz) | IF Output (MHz) | IF Bandwidths (MHz) | IF Rejection Min (dB) | IF Rejection Typ (dB) | Supply Voltage (VDC) Min | Supply Voltage (VDC) Max | Tuning Resolution (kHz) | Size L·W·H (in) | Ambient Operating Temp. (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Convertawave | 225 | 500 | 70 | .5 | - | 80 | +10 | +18 | 100 | 6.50 x 4.00 x 0.75 | -20 to +50 |
| ConvertaWave 2 | 200 | 2500 | 70 | .5 1.0 1.5 2.0 10 | 80 | 100 | +9 | +16 | .001 | 7.00 x 4.00 x 1.35 | -20 to +50 |
