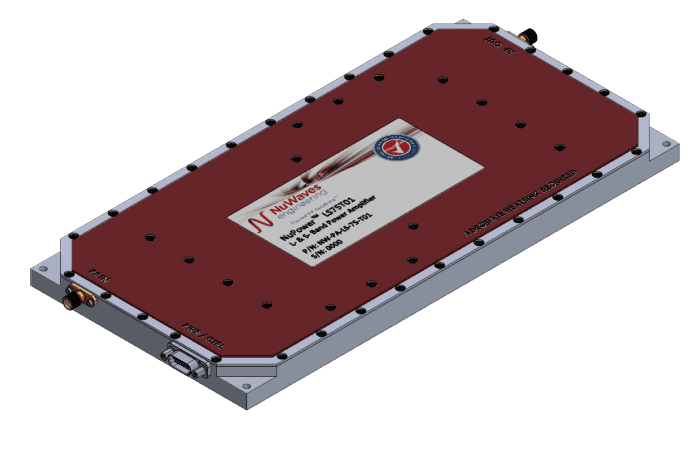

NuPower™ LS75T01 L- & S-Band Solid State Power Amplifier

Product Number: NW-PA-LS-75-T01 Product Type:

The NuPower™ LS75T01 is a small, highly efficient, solid state power amplifier that provides 100 watts of RF power to boost performance of data links and transmitters.

Operating Frequency

800 MHz to 2500 MHz

Output Power, Typ

75 Watts CW

Export Classification

EAR99

The NuPower™ LS75T01 is a small, highly efficient, solid state power amplifier that provides 100 watts of RF power to boost performance of data links and transmitters. The NuPower LS75T01 Power Amplifier accepts a nominal +3 dBm (2 mW) RF input and provides ~50 dB of gain from 800 MHz to 2500 MHz. This module handles both constant envelope and complex waveforms such as OFDM, QAM, DVB-T, etc.

Based on the latest gallium nitride (GaN) technology, the NuPower LS75T01’s 40% power efficiency at rated power and <31 in3 form factor make it ideal for size, weight, and power-constrained broadband RF telemetry, tactical communication systems, and electronic warfare systems.  NuPower PAs feature over-voltage protection and can operate over a wide temperature range of -40 °C to +85 °C (baseplate).
