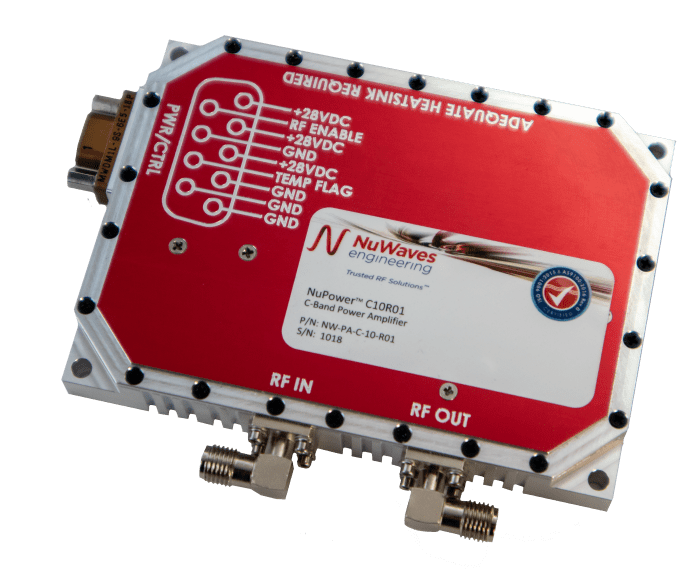

NuPower™ C10R01 C-Band Solid State Power Amplifier

Product Number: NW-PA-C-10-R01 Product Type:

The NuPowerTM C10R01 is a small, highly efficient, solid state power amplifier that provides 10 watts of RF power across the 5100 to 5900 MHz frequency range to boost performance of data links and transmitters for communications range extension, electronic warfare (e.g. electronic attack), etc.

Operating Frequency

5100 MHz to 5900 MHz

Output Power, Typ

10 W Psat

Export Classification

EAR99

The NuPowerTM C10R01 is a small, highly efficient, solid state power amplifier that provides 10 watts of RF power across the 5100 to 5900 MHz frequency range to boost performance of data links and transmitters. The NuPower C10R01 accepts a nominal 0 dBm RF input and provides 40 dB of gain from 5100 to 5900 MHz for continuous wave (CW) and near-constant envelope waveforms.

Based on the latest gallium nitride (GaN) technology, the NuPower C10R01’s power efficiency and form factor make it ideal for size, weight, and power-constrained broadband RF telemetry, tactical communication systems, and electronic warfare systems. NuPower PA’s feature over-voltage protection and can operate over a wide temperature range of -40 oC to +85 oC (baseplate). The NuPower C10R01-AH supports an active high (inverted) logic.
