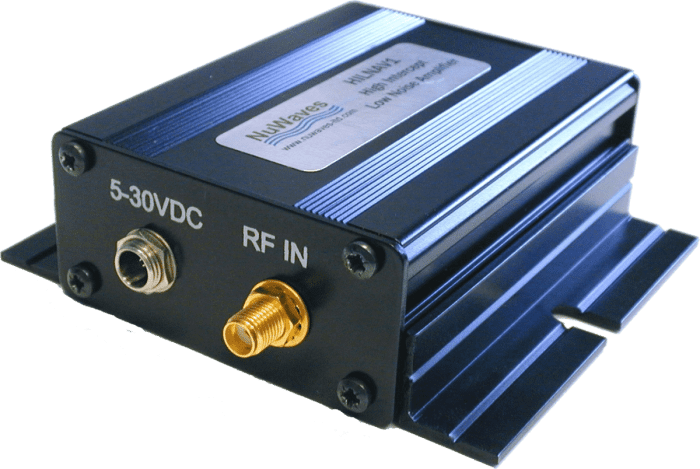

HILNA™ G2V1 Low Noise Amplifier

Product Number: HILNA-G2V1 Product Type:

This high-performance module delivers 40 dB of gain over the frequency range of 50 MHz to 1000 MHz, with an OIP3 of +32 dBm and less than 1 dB of noise figure. The HILNA G2V1 is also usable up to 2000 MHz with 28 dB of gain (typ).



Operating Frequency

50 to 1000 MHz

Export Classification

EAR 99

Product Description

NuWaves’ HILNA G2V1™ is a broadband low noise amplifier designed to achieve high gain while maintaining low noise and a high third-order intercept point from VHF to microwave frequencies. The HILNA G2V1’s robust power supply also operates over a very broad range easily allowing the unit to be integrated into systems without regard to power supply precision.

Custom Solutions Available:

  • Other Bandwidths
  • Military Screening
  • Form Factors
  • Filtering
  • Gain

For an option with mounting flanges, please use P/N: HILNA-G2V1-M/F
