RF Design Services

for Military and Aerospace Markets

NuWaves Engineering provides RF engineering and microwave design services to military and aerospace clients for product design & development, test & qualification, production, system repackaging, and system sustainment & modernization.

With in-house capabilities that include state-of-the-art design and simulation tools, test and measurement equipment like our EMI chamber, prototyping equipment including our in-house machine shop, and a full-scale production facility, our team is able to transition concepts into high-performance hardware quickly and cost effectively.

  • Industry leading quick-turn development cycles
  • SWaP constrained applications
  • DC to Ka-Band frequencies

NuWaves Engineering provides RF engineering and microwave design services to military and aerospace clients for product development, production, test & qualification, production, and system sustainment & modernization.

  • Industry leading quick-turn development cycles
  • SWaP constrained applications
  • DC to Ka-Band frequencies

Transmitter & Transponder

RF Engineering RF Transmitter RF Transponder Design

Frequency Converters

RF Frequency Converter Design

Power Amplifiers

RF Power Amplifier Design

RF Receivers

RF Front End Receiver Design

BDAs

RF Bidirectional Amplifier BDA Design

Filters & Multiplexers

RF Filter Multiplexer Design
RF Frequency Converter Design

NuWaves Engineering is a leader in designing Frequency Upconverters, Frequency Downconverters, Frequency Transverters, Frequency Extenders, Frequency Translators, etc. to provide frequency operational flexibility and system sustainment services by modifying existing hardware to comply with new frequency allocations. Before you replace an entire RF communication system, speak with a member of our team to see how NuWaves Engineering can modernize your existing setup to give you the same performance at a new frequency.

Our designs involve frequencies from 2 MHz up to 5.9 GHz and include the following building blocks: Oscillators – DRO, XTAL, CRO, SAW, & discrete, Frequency Dividers, Frequency Synthesizers, Ultra-low added noise multipliers, and comb generators with internal/external reference. [/expand]

NuWaves Engineering also has COTS Frequency Upconverter & Downconverters available for purchase today.

Frequency Converter Design Experience >>>

contact our frequency converter design team
RF Front End Receiver Rx Design

NuWaves designs state-of-the-art, high-performance, high-dynamic range RF Front-End Receivers and RF Tuners that deliver superb performance in high signal environments. This includes both custom receiver designs and performance enhancements to existing designs.

NuWaves Engineering has designed receivers with the following special attributes:

  • Low Current
  • Low SWaP
  • High Sensitivity
  • Wide Dynamic Range
  • Low Noise Figure
  • Automatic Gain Control
  • Varactor-Tuned Bandpass Filtering
  • Broadband Frequency Tuning Ranges

RF Receiver & Front End Design Experience >>>

Our expertise in low noise amplifier designs is a result of our experience with designing high-performance receiver systems and RF front ends, and have experience working up to Ka-band frequencies.

  • Single-stage LNAs
  • Multiple-stage LNAs
  • Multiple Stages with Inter-stage Filtering
  • Automatic Gain Control
  • Medium Power Amplifiers

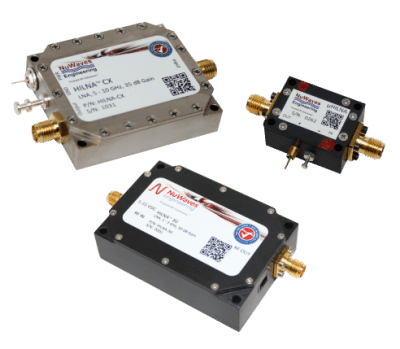

We offer a complete line of COTS High Intercept Low Noise Amplifier (HILNA) LNAs, and we offer custom low noise amplifier design services to provide your system with the front-end attention it needs to perform at the highest level. Check out our Low Noise Amplifier (LNA) Design page for more information, or click to get in touch with our LNA Design Team below and a member of our Engineering Services’ team will be in contact with you shortly.

NuWaves Engineering RF Low Noise Amplifier LNA Design Services
RF Filter Multiplexer Design

NuWaves Engineering has the in-house expertise, experience, and resources to deliver high performance filters manufactured in-house that meet the most stringent tolerance requirements. We have designed filters for almost any RF application imaginable, from ultra high powered filters that successfully completed multipaction testing, to identifying low SWaP sensitive sources of interference that may drown out nearby channels through your transmission.

With our NuFilter line of COTS RF Filters that include miniature harmonic filters, bandpass filters, & broadband preselectors, NuWaves Engineering has a cost effective filtering solution to fill your needs. In addition, NuWaves Engineering also has a in-house rapid-fill custom cavity filter service that will evaluate your specifications provided and return a quote within 24 hours for your custom cavity filter, with lead times of 2-3 weeks for deliverables.

NuWaves Engineering offers filter design services rivaling the industry’s major filter manufactures with a driven focus towards performance and lead time.

Filter & Multiplexer Design Experience >>>

Contact Our RF Front End Design Team
RF Power Amplifier PA Design Services

Our expertise and experience is with designing low-SWaP (size, weight, and power supply) RF power amplifiers from VHF to Ka-Band, including:

  • Incredibly Low SWaP Designs
  • Custom Designed MMICs
  • High Efficiency Design Classes
  • High Output Power
  • High Linearity
  • Multi-Octave Designs

Talk to our team about designing a RF Power Amplifier for your SDR, check out our RF Power Amplifier Design page for more information about our power amplifier design services. Or, take a look at our NuPower family of COTS Power Amplifiers, which utilize GaN transistors to achieve low SWaP,  high ruggedization, multi-octave bandwidth, and high efficiency for flexible integration and operation.

PA Design Experience >>>

Experienced at designing and building BDAs from HF to Ka-Band frequencies, our expertise includes:

  • Low SWaP Designs
  • High RF Output Power
  • Fast Switching Times (< 1 µs)
  • Power Efficiency
  • High Linearity
  • Wide Bandwidth

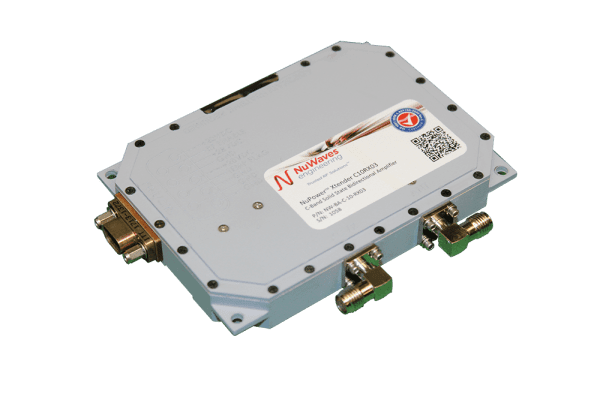

NuWaves Engineering has the experience and expertise working with the latest transistor technology and designing our own MMICs to maximize your RF capability and readiness. Take a look at our NuPower Xtender line of COTS Bidirection Amplifiers, which feature BDAs utilizing GaN and LDMOS type transistors to provide high power amplification for half-duplex data link transceivers.

BDA Design Experience >>>

RF Bidirectional Amplifier BDA Design Services NuWaves Engineering
Contact our pa design team

Experienced at designing and building BDAs from HF to Ka-Band frequencies, our expertise includes:

  • Low SWaP Designs
  • High RF Output Power
  • Fast Switching Times (< 1 µs)
  • Power Efficiency
  • High Linearity
  • Wide Bandwidth

NuWaves Engineering has the experience and expertise working with the latest transistor technology and designing our own MMICs to maximize your RF capability and readiness. Take a look at our NuPower Xtender line of COTS Bidirection Amplifiers, which feature BDAs utilizing GaN and LDMOS type transistors to provide high power amplification for half-duplex data link transceivers.

RF Bidirectional Amplifier Design Services NuWaves Engineering

BDA Design Experience >>>

Contact our pa design team

At its core, NuWaves Engineering has been designing, developing, manufacturing, and sustaining RF transmitters and transponders for our military and government customers since founded in 2001. Our continuum of services spans from providing traditional RF front-end design services in close collaboration with a third-party responsible for the digital signal processing (DSP)/control design, to providing a complete turn-key transceiver solution inclusive of analog and digital functions. We have experience designing:

  • Telemetry Transponder Hardware
  • RF Unit Daughter Cards (RFU-D)
  • Sonobuoy Radio Boards
  • TSPI RF Data Transceivers for Ground, Airborne, and Underwater Communications
  • Add-on Designs to Expand upon Existing Communication Capabilities to Support New Frequency Bands, and even Micro-Transmitters

Transmitter Design Experience >>>

RF Design Services Transceiver NuWaves Engineering
contact our transmitter design team

At its core, NuWaves Engineering has been designing, developing, manufacturing, and sustaining RF transceivers for our military and government customers since founded in 2001. Our continuum of services spans from providing traditional RF front-end design services in close collaboration with a third-party responsible for the digital signal processing (DSP)/control design, to providing a complete turn-key transmit solution inclusive of analog and digital functions. We have experience designing:

  • Telemetry Transponder Hardware
  • RF Unit Daughter Cards (RFU-D)
  • Sonobuoy Radio Boards
  • TSPI RF Data Transceivers for Ground, Airborne, and Underwater Communications
  • Add-on Designs to Expand upon Existing Communication Capabilities to Support New Frequency Bands, and even Micro-Transmitters
RF Design Services Transceiver NuWaves Engineering

Transceiver Design Experience >>>

contact our transceiver design team

Our RF design project experience includes nearly 15 years of successfully meeting or exceeding our clients’ expectations with advanced RF and microwave designs. NuWaves Engineering is driven to advance our your missions by offering a full spectrum of solutions to maximize our customers’ RF capability and readiness, and ultimately engineer a lasting partnership.

Take a look at our RF Design Experience page to learn more, or click to get in touch with our RF Design Team below and a member of our Engineering Services team will be in contact with you shortly.

NuWaves Engineering RF Design Service Experience
Contact our RF Design Engineering team

Contact our RF design services staff today to learn about outsourcing your RF and microwave system, subsystem, or module design requirements.
